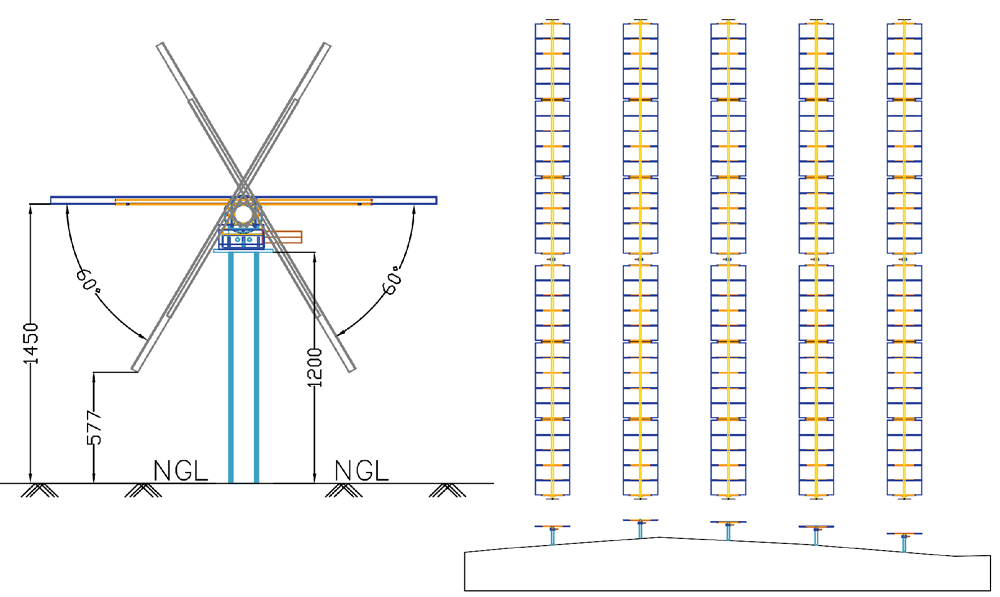

Each tracker row is driven by a linear actuator or slew drive depending on the option selected. A maximum of 60 modules can be mounted on each row. The sun is tracked from east to west with provision for back tracking to avoid proximal shadow losses.
Can be installed on undulating land.
PTFE bearings used are maintenance free and long lasting.
Dedicated controller for each row minimises capacity effected due to any down time.
The system can easily be Scaled from kilowatt to megawatt size installations.
Independent row tracker GCR is higher compared to traditional trackers. Enables ease of movement for O&M.
Simple assembly and rapid installation results in reduction of installation cost and compression of construction schedule.
The self-powered controller eliminates need for auxiliary power.
The intelligent back tracking algorithm within the tracker increases energy output by avoiding proximal shadows.
